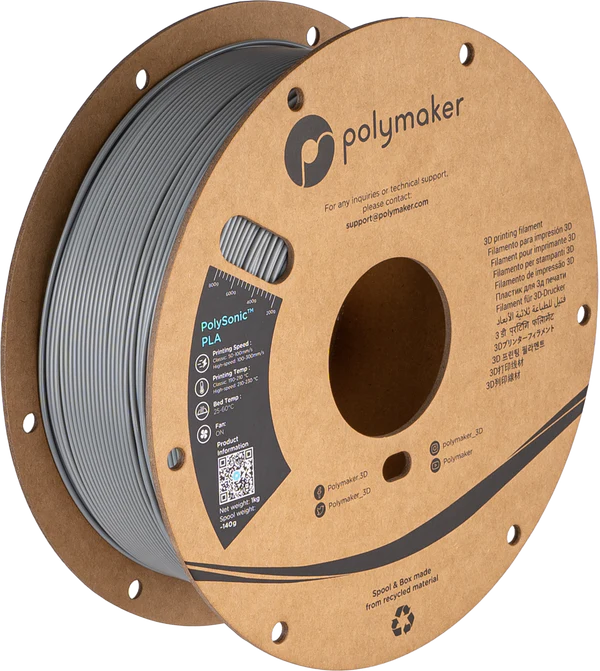

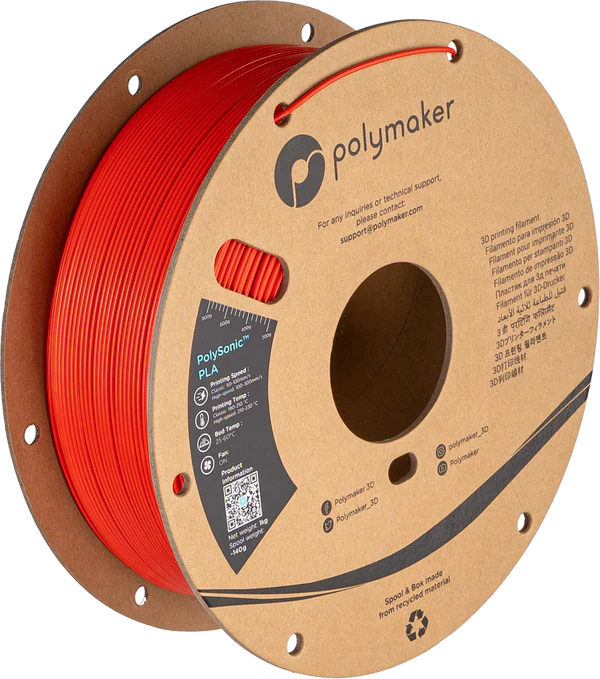

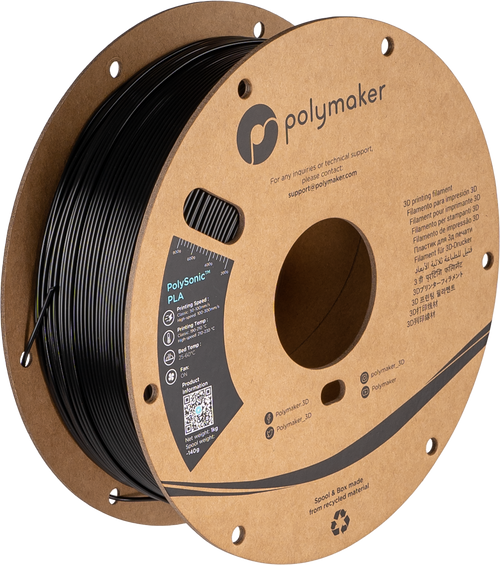

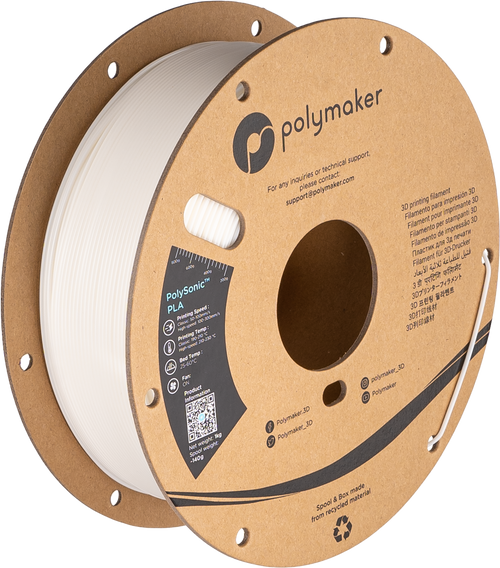

Polymaker PolySonic PLA Filament

PolySonic™ PLA is a revolutionary high-speed 3D printing filament that redefines performance in additive manufacturing. Engineered for lightning-fast extrusion, high precision, and superior layer adhesion, it allows you to push your 3D printer to its limits — without sacrificing strength or surface quality.

Whether you're scaling up production or optimizing prototyping, PolySonic™ PLA helps you accelerate your workflow and achieve unmatched productivity.

 What is a High-Speed Filament?

A filament is considered "High Speed" if it meets the following three key performance criteria at a specific printing temperature:

1. Flowability
It must extrude consistently at 24 mm³/s using standard extrusion systems.
(Equivalent to 300 mm/s print speed with 0.2 mm layer height and 0.4 mm nozzle)

2. Formability
At the same high speed (24 mm³/s), the filament must maintain comparable surface quality, bridging, and overhang performance to prints made at lower speeds.

3. Functionality
It must retain at least 80% of its mechanical properties — including layer adhesion, tensile strength, and impact resistance — compared to prints made at lower speeds.

---

How Does PolySonic™ PLA Perform? (At 230°C)

✅ 1. Maximum Flow Rate:
A…
 Printing & Drying Settings – PolySonic™ PLA

🖨️ Printing Temperature

Classic Mode: 190°C – 230°C

High-Speed Mode: 210°C – 230°C

🚀 Printing Speed

Classic Mode: 50 mm/s – 100 mm/s

High-Speed Mode: 100 mm/s – 300 mm/s

🔥 Bed Temperature

25°C – 60°C

🌬️ Cooling Fan

ON

--

🔁 Retraction Settings

Direct Drive Systems

Retraction Distance: 1 mm

Retraction Speed: 20 mm/s

Bowden (Indirect) Drive Systems

Retraction Distance: 3 mm

Retraction Speed: 40 mm/s

---

💨 Drying Settings

Temperature: 55°C

Duration: 6 hours

> (Dry only if the filament has absorbed moisture.)

Spool Dimensions:

🔹 0.5kg Cardboard Spool
– Inner Hole Diameter: 55 ± 1 mm
– Spool Diameter: 200 ± 1 mm
– Spool Width: 65.6 ± 2 mm
– Spool Weight: 190 ± 7 g

🔹 0.75kg Cardboard Spool
– Inner Hole Diameter: 55 ± 1 mm
– Spool Diameter: 200 ± 1 mm
– Spool Width: 50.6 ± 2 mm
– Spool Weight: 125 ± 7 g

🔹 1kg Cardboard Spool
– Inner Hole Diameter: 55 ± 1 mm
– Spool Diameter: 200 ± 1 mm
– Spool Width: 65.6 ± 2 mm
– Spool Weight: 140 ± 7 g

🔹 2kg Cardboard Spool
– Inner Hole Diameter: 55 ± 1 mm
– Spool Diameter: 250 ± 1 mm
– Spool Width: 117.2 ± 2 mm
– Spool Weight: 370 ± 18.5 g

🔹 3kg Cardboard Spool
– Inner Hole Diameter: 55 ± 1 mm
– Spool Diameter: 250 ± 1 mm
– Spool Width: 117.2 ± 2 mm
– Spool Weight: 425 ± 21.3 g

🔹 5kg Plastic Spool (PP Material)
– Inner Hole Diameter: 32 ± 1 mm
– Spool Diameter: 300 ± 1 mm
– Spool Width: 160 ± 1 mm
– Spool Weight: 819 ± 30 g
